PCL And Touch Screen PCB Handling Equipment NG/OK Unloader With Three Color Tower Light Display
Introduce
The NG/OK unloader is a device used in automated production lines or industrial processes to separate materials or products in the manufacturing process into two categories: unqualified (NG) and qualified (OK).
The device usually has the following functions and features:
1.Unloading Function: NG/OK Unloaders are used to unload or move materials or products from a production line or process to a designated location. This could be transferring material from one conveyor belt to another, or moving product from a production line to an inspection or packaging area.
2.Classification function: NG/OK unloader can classify materials or products into two categories: unqualified and qualified according to set standards or quality requirements. This may involve using sensors, vision systems or other inspection methods to detect the quality, size, weight or other characteristics of materials or products.
3.Automated Control: NG/OK unloaders are usually automated and equipped with control systems and sensors to monitor and control the movement and classification process of materials or products. This enables an efficient production process and reduces manual operations and errors.
4.Data logging and reporting: Some NG/OK unloaders also have data logging and reporting functions that can record the classification results of each material or product and generate relevant reports. This aids in quality control and analysis of the production process.
Features
1.PLC program control.
2.Strong,firm
3.Optional control button or touch screen control up to customers.
4.Top and bottom pneumatic clamps to secure magazine rack.
5. No PCB breakage guaranty during loading&unloading.
6.Automatic NG/OK board separate store NG/OKboards.
7. NG/OK signal from the upstream AOI machine.
8.Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door.
9. Enclosed machine design for safety operation.
10, Three color tower light display.
11. SMEMA compatible.
Specification
| Model: | HS-N100M | HS-N100L |
| Voltage: | AC100V/220V, 50/60Hz |
| Size: | M | L |
| PCB Size(mm): | (50x50)~(330x250) | (50x50)~(450x330) |
| Magazine racks size(mm): | 355*320*560 | 460*400*560 |
| Magazine Qty | Upper conveyor,1 pc; bottom conveyor 1pc |
| Air supply: | 0.4~0.6Mpa,20L/Min max |
| PCB loading time: | 6 seconds, or customized |
| Transport height: | 900±20(mm) |
| Transport Direction: | L-R or R-L (optional) |
| PCB thickness: | Min 0.6mm |
| Up/down pitches: | 1-4(10mm step) |
| Communication | SMEMA signal |
| Machine Dimension(mm): | 1550*1550*1250 | 1850*1780*1250 |
| Gross Weight: | Approx 220kg | Approx 320kg |
|
|

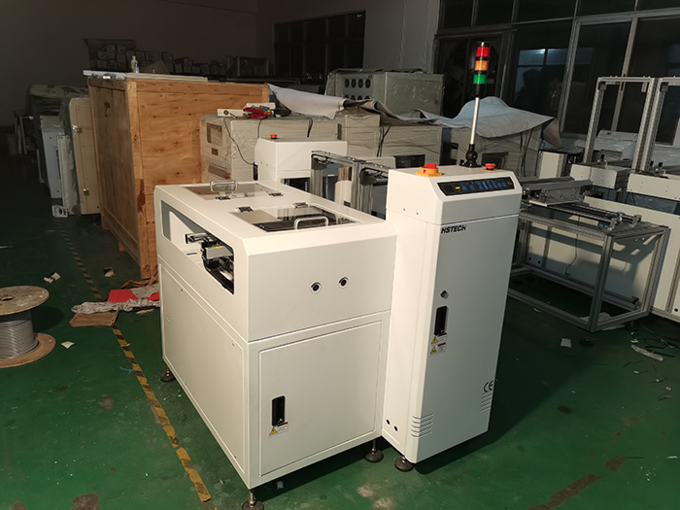

PCL And Touch Screen PCB Handling Equipment NG/OK Unloader With Three Color Tower Light Display Images
|
