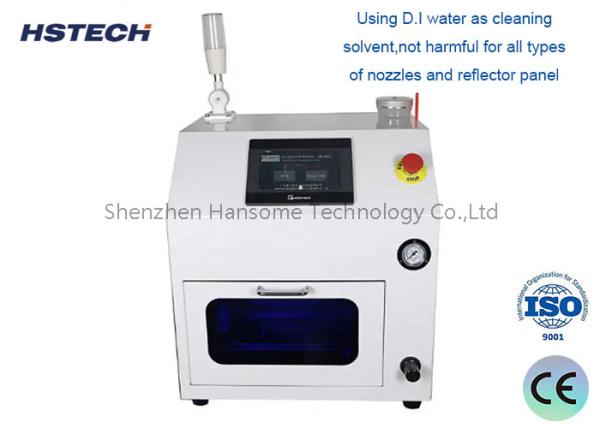

Touch Screen SMT Nozzle Cleaner SMT Cleaning Equipment With 304 Stainless Steel
Introduction
The nozzle cleaning machine is a cleaning device that replaces the traditional cleaning of nozzles by steel needles or ultrasonic vibration. It can remove the dirt on the nozzles that could not be removed before in a short time. And the nozzle will not be damaged during the cleaning process. Since non-toxic and harmless cleaning liquid is used, the whole process is more environmentally friendly.
Features
- Completely solve the dirt and impurities that are difficult to clean with ultrasonic waves;
- It will not be cleaned due to the smaller and smaller suction nozzle hole diameter;
- More thorough cleaning directly extends the life of the nozzle;
- No damage to the nozzle surface coating and reflective plate;
- Use environmentally friendly deionized water or distilled water for cleaning;
- Automatic continuous cleaning and automatic drying;
- The operation is simpler and more convenient;
- Suitable for various placement machines.
- Max can clean 30 pcs nozzles at one time, achieve high efficiency and energy saving
Basic structure:
It consists of cleaning table, nozzle clamping mechanism, cleaning liquid spraying system and other components.
The cleaning table provides a fixed working platform for placing the nozzle to be cleaned.
The nozzle clamping mechanism is used to automatically grab and position the nozzle for cleaning.
The cleaning liquid spraying system is responsible for spraying cleaning liquid on the surface of the nozzle for cleaning.
Main features:
High degree of automation: fully automatic completion of nozzle placement, cleaning and drying.
Excellent cleaning effect: special cleaning liquid and spraying process can completely remove dirt.
Improve efficiency: greatly shorten manual cleaning time and improve production efficiency.
Reduce costs: reduce manual operation, reduce consumables and maintenance costs.
Protect equipment: extend the service life of the nozzle and reduce maintenance frequency.
Main functions:
Automatically identify and locate the nozzle to be cleaned, accurately grab and place it on the cleaning table.
Spray special cleaning liquid, soak the nozzle surface, fully dissolve and remove dirt.
Adopt hot air drying technology to quickly dry the nozzle surface to ensure cleaning effect.
Automatically adjust the amount of cleaning liquid spraying and drying time according to cleaning needs.
It can be linked with the SMT placement machine to complete the automatic cleaning operation.
Application scenarios:
Widely used in the SMT production line of electronic products to clean the nozzle of the placement machine.
Applicable to all kinds of SMT production enterprises to improve the operation efficiency of the production line.
It can also be used in other industries where tools or parts need to be cleaned regularly.
Product advantages
1. Reduce the purchase cost of the nozzle
2. Reduce unnecessary labor
3. Reduce product defect rate. Dirty nozzles with weak suction force can easily cause components to slip and throw away, resulting in an increase in product defect rate
4. Improve SMT production efficiency
Specification
| Model | HS-800 |
| Voltage | Single phase, AC110-220V, 50H60Hz |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | PLC+Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 01005, 0201-2512inch |
| Noise | 35-60dB |
Machine size
Nozzle Tray
|
|
